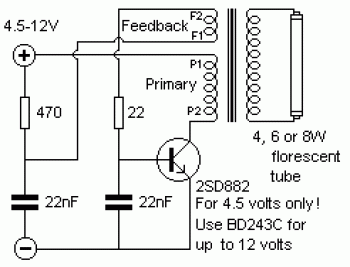

This inverter circuit is extremely simple to construct, trustworthy, and even effective adequate to light up a 15W florescent tube (if you cool your transistor nicely). The only hard-to-find piece of this circuit will be the so-called yellow inverter transformer. It really is a miniature high frequency transformer that features a 25mm x 20mm x 5mm ferrite core, 30 turns of main, 15 turns of feedback, and 250 turns of secondary all concentric, wound on plastic frame than wrapped having a 'yellow' adhesive tape.
If you cannot find it within your regional electronic shops then search for old portable rechargeble florescent lanterns considering that they have at least a single yellow inverter. Naturally you can wind a handmade transformer which would do the same nonetheless it is actually a really tough job if you don't have an original to inspire and it'll nonetheless require an proper ferrite core.
Characteristics:
Bipolar NPN transistor : 2SD882 (or D882 as labeled)
Casing : TO126
Max. collector current : 3 Amperes
Max. total power : 10 Watts, while case is at 25 degrees Celsius
Transition frequency : 45 MHz
Max. collector capacity : 45 pF
hFE (current gain) : 160 at 1 Ampere (typical value)
Bipolar NPN transistor : BD243C
Casing : TO220
Max. collector current : 6 Amperes
Max. total power : 65 Watts, while case is at 25 degrees Celsius
Transition frequency : 3 MHz
hFE (current gain) : 30 at 300mA (minimum value)

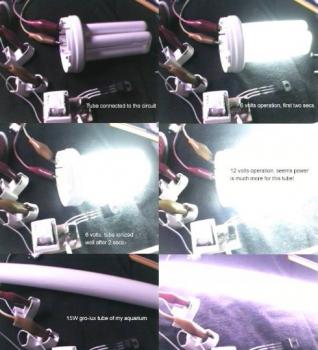

Here the action:
Detailed explanation, go to the original page of Simple Inverter Circuit for Florescent Lamps
