The circuit is using FET FQB45N03 for signal amplification, and TL494 as pulse width modulation control. The circuit give you sine wave output with 50Hz frequency.

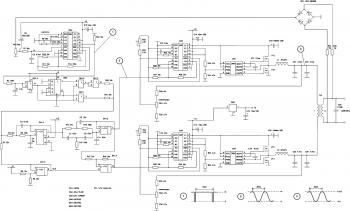

12VDC to 220VAC high power inverter circuit with sine output, schematic diagram source: http://powersupply88.com/12220v-converter-with-sine-output.html
About Inverter
An inverter is an power electronic device that converts direct current (DC) to alternating current (AC); the converted AC can be at any required voltage and frequency with the use of appropriate transformers, switching, and control circuits. Solid-state inverters have no moving parts and are used in a wide range of applications, from small switching power supplies in computers, to large electric utility high-voltage direct current applications that transport bulk power. Inverters are usually used to supply AC power from DC sources such as solar panels or batteries. It will be useful for emergency electric source
