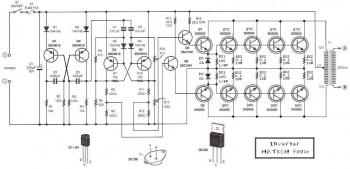

500W Power Inverter 12VDC to 220VAC

electronic circuit diagram


500W power inverter 12VDC to 220VAC, the inverter is using full transistors for both multivibrator module and power amplifier module. There are total of 10 2N3022 transistors for power amplifier.

The input supply should be a car battery rated at 12V/50A to get maximum power and maximum inverter usage when supplying some electronic devices. This 500W power inverter circuit is inexpensive and easy to make. The headsink should be used to prevent overheating on the power transistors.


About Inverter
An inverter is an power electronic device that converts direct current (DC) to alternating current (AC); the converted AC can be at any required voltage and frequency with the use of appropriate transformers, switching, and control circuits. Solid-state inverters have no moving parts and are used in a wide range of applications, from small switching power supplies in computers, to large electric utility high-voltage direct current applications that transport bulk power. Inverters are usually used to supply AC power from DC sources such as solar panels or batteries. It will be useful for emergency electric source
