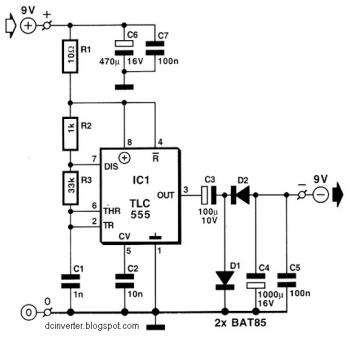

Here the schematic diagram of DC converter circuit converting input voltage of +9V to be -9V on output side. Those of you who frequently use devices that work on battery or you need a negative trend at the moment you've a single positive, will surely search for a converter such as the one described below.
Assembling this circuit, you'll be able to convert a positive voltage of a battery of 9 V to negative, working with popular integrated timer IC 555. The same circuit can also be utilized in conditions those requiring two symmetrical lines of power, when available a single battery. The integrated TLC555 will be the old bipolar NE555, manufactured with technology but CMOS. Unless you have this type of integrated, you might also use an 7555. In this design, the TLC555 is syndesmologimeno set up in a ground unstable.
The oscillation frequency established by the A2, A3, C 1 and getting close to 20 kHz. The rectangular waveform generated by the oscillator is therefore time to time (Duty Cycle) close to 50%. The waveform is led to a rectifier Doubler formed by C3, O1, O2 and C4. In place of O1 and O2 need to be placed diodes Schottky type VAT85 because of low voltage correct direction that is equal to 0,4 V (silicon diodes such as type 1N4148, present a tendency equal to 0,7 V).
The capacitor C4 concerns for smoothing the voltage bristled, while the C5 relieve the signal from noise high frequencies. Using the support of A1, C6 and C7 accomplished the disconnection of supply voltage timer. The consumption of the inverter to power relies largely on the load to be connected to the output of -9 V. The output voltage is held within tolerable levels, because the load current is kept lower than 1O mA. For making it simple and easy to integrate the inverter into any electronic device, I recommend you to make a small/compact PCB board.
About Inverter
An inverter is an power electronic device that converts direct current (DC) to alternating current (AC); the converted AC can be at any required voltage and frequency with the use of appropriate transformers, switching, and control circuits. Solid-state inverters have no moving parts and are used in a wide range of applications, from small switching power supplies in computers, to large electric utility high-voltage direct current applications that transport bulk power. Inverters are usually used to supply AC power from DC sources such as solar panels or batteries. It will be useful for emergency electric source
An inverter is an power electronic device that converts direct current (DC) to alternating current (AC); the converted AC can be at any required voltage and frequency with the use of appropriate transformers, switching, and control circuits. Solid-state inverters have no moving parts and are used in a wide range of applications, from small switching power supplies in computers, to large electric utility high-voltage direct current applications that transport bulk power. Inverters are usually used to supply AC power from DC sources such as solar panels or batteries. It will be useful for emergency electric source
