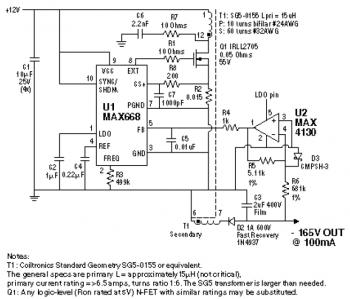

Here is the circuit of 12V to -165V 100mA DC converter. This circuit uses the MAX668 and a transformer (which will need about a one-to-six turns ratio) to build a flyback converter. The op-amp module is used to invert the feedback from the negative output voltage.
The circuit produces -165V at 100mA from a +12V input. Primarily based on a MAX668 transformer flyback application, the circuit utilizes a custom transformer to produce -165V through a combination of turns ratio and duty cycle. The transformer is designed on an SG5-size bobbin to facilitate the winding and to reduce the leakage inductance.
D2 is preferred as a fast-recovery diode to moderate the cost for a high-breakdown voltage part. Since the diode will see 165V + (6 x Vin) + flyback due to leakage inductance, a 600V rating is required. C3 is selected as a film capacitor to get high voltage rating and high ripple-current capacity.
The MAX668 is designed for a wide range of DC-DC conversion applications including step-up, SEPIC, flyback, and isolated-output configurations. Power levels of 20W or more can be controlled with conversion efficiencies of over 90%. The 1.8V to 28V input voltage range supports a wide range of battery and AC-powered inputs. An advanced BiCMOS design features low operating current (220µA), adjustable operating frequency (100kHz to 500kHz), soft-start, and a SYNC input allowing the MAX668 oscillator to be locked to an external clock.
Download MAX668 datasheet
Source: www.maxim-ic.com
